Connecting Rod Kit

Restore strength and reliability to your 2-stroke engine with the Hot Rods Connecting Rod Kit. This is a heavy-duty OE replacement designed for demanding riding and high-RPM operation, making it an excellent choice for bottom-end rebuilds on 250/300cc 2-cycle engines. Precision manufacturing, advanced bearing design and smart oiling features help reduce wear and extend service life.

If your engine has excessive play, knocking, or you’re planning a full rebuild, this kit provides the critical components needed to refresh the crank/rod assembly with confidence—while remaining compatible with Hot Rods and OEM crankshafts.

Key features:

• ✅ Certified 8620 AISI steel connecting rod for superior strength
• ✅ Case-hardened crankpin (hot-rolled ASTM 4115) for durability at 58–62 Rc
• ✅ High-RPM longevity with the latest caged needle roller bearing designs

Benefits of use:

• 🔹 Reliable at high revs: big-end scalloping and vent slots help minimize bearing race distortion
• 🔹 Better lubrication where it matters: double-drilled small end feeds extra oil and cooling to the wrist pin bearing
• 🔹 Built for rebuild quality: shot-peened and double-honed for an ultra-round bearing surface and reduced stress risers

Technical specifications:

• 📌 Big end I.D.: 31.000 mm
• 📌 Big end width: 16.900 mm
• 📌 Center-to-center length: 124.900 mm
• 📌 Small end I.D.: 22.000 mm
• 📌 Small end width: 16.900 mm
• 📌 Thrust washer thickness: 1.000 mm
• 📌 Pin length: 59.800 mm

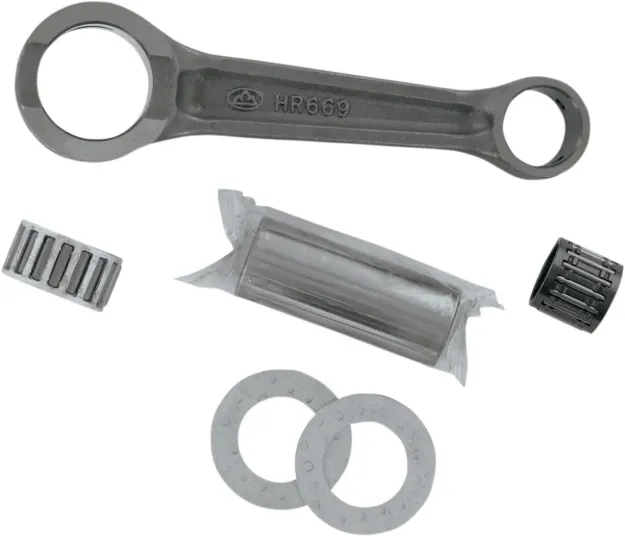

Kit includes:

• • Connecting rod
• • Crank pin
• • Crank pin bearing
• • Wrist pin (top-end) bearing
• • Thrust washers

Why choose this kit?

• ⭐ Made in the USA with performance-focused engineering
• ⭐ Rebuild-ready completeness—key parts included in one package
• ⭐ Proven compatibility with Hot Rods and OE crankshafts for easier planning
