VHM Lightweight Connecting Rod Kit – KTM / Husqvarna / GasGas 85–112
The VHM Lightweight Connecting Rod Kit is a high-performance connecting rod assembly developed for compatible KTM, Husqvarna and GasGas two-stroke motocross engines.
The VHM connecting rod is manufactured from high-strength material and weighs 20 grams less than the original OEM connecting rod, improving throttle response.
Its special construction provides exceptional resistance to deformation, while the superfinished surface helps prevent the formation of small fractures in the material.
The connecting rod must be used with the included massive big end pin to achieve the intended crankshaft balance factor and minimize engine vibrations.
Main Features
20 grams lighter than the OEM connecting rod
Improved throttle response
High-strength construction
Extremely low big end oval deformation
High resistance to material fractures
Superfinished surface
Optimized balance factor with massive big end pin
Reduced engine vibrations
Suitable for demanding motocross and racing applications
Motorcycle Compatibility
Manufacturer | Model | Model years |
|---|
KTM | 85 SX | 2013–2027 |
KTM | 105 SX | 2013–2027* |
KTM | 112 SX | 2013–2027* |
Husqvarna | TC 85 | 2013–2027* |
Husqvarna | TC 105 | 2013–2027* |
Husqvarna | TC 112 | 2013–2027* |
GasGas | MC 85 | 2021–2027 |
GasGas | MC 105 | 2021–2027* |
GasGas | MC 112 | 2021–2027* |
Model names and year ranges are taken from the supplied product title. Availability of individual 105/112 models and compatibility with modified engines should be verified before installation.
Engine type: Two-stroke
Application: Motocross / Racing / Engine tuning
20 Grams Lighter – Improved Throttle Response
The VHM connecting rod is engineered to weigh 20 grams less than the OEM connecting rod.
Reducing connecting rod weight decreases inertial loads on moving engine components and contributes to improved throttle response.
Main benefits:
Improved throttle response
Reduced reciprocating component weight
Improved engine operating characteristics
Suitable for high-performance racing applications
Exceptional Resistance to Deformation
One of the main advantages of the VHM connecting rod is its high-strength construction and reduced oval deformation of the big end bore.
According to VHM, the following deformation values occur under engine braking conditions:
Specification | Standard connecting rod | VHM connecting rod |
|---|
Big end oval deformation | 0.015–0.020 mm | 0.005 mm |
The VHM connecting rod therefore demonstrates 3 to 4 times less oval deformation under the stated conditions.
Reduced deformation helps maintain the correct geometry of the connecting rod under high mechanical loads.
Superfinished Surface – Improved Durability
The VHM connecting rod features a special superfinished surface.
This treatment creates a smooth surface that helps reduce the formation of small material fractures during repeated engine loading.
Benefits include:
Smooth, refined surface finish
Reduced risk of microfracture formation
Improved resistance to material fatigue
Enhanced durability under demanding conditions
Massive Big End Pin – Optimized Balance Factor
The VHM connecting rod must be used with the special massive big end pin included in the kit.
The combination of the lightweight connecting rod and massive pin is designed to achieve the intended crankshaft balance factor.
This helps reduce engine vibrations and supports smoother engine operation.

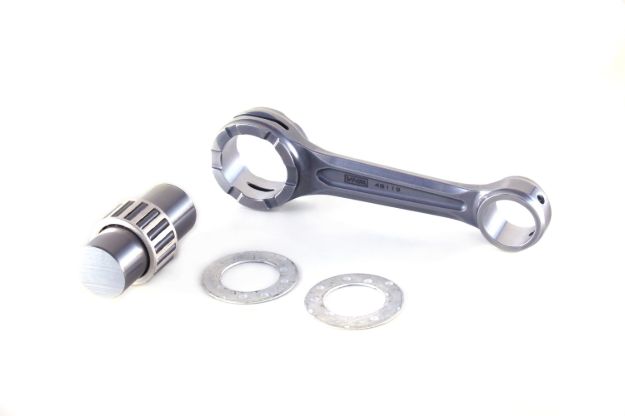

Package Contents
The VHM connecting rod kit includes:
Installation
Installation requires professional crankshaft disassembly, assembly and alignment.
During installation, all crankshaft components should be inspected, the supplied massive big end pin and bearing must be installed correctly, and the manufacturer's specified tolerances must be followed.
Professional installation by an experienced crankshaft rebuilding specialist is strongly recommended.
Technical Specifications
Specification | Details |
|---|
Brand | VHM |
Product | Lightweight connecting rod kit |
Weight reduction | 20 g compared to OEM |
Big end oval deformation | 0.005 mm |
Standard deformation | 0.015–0.020 mm |
Surface treatment | Superfinishing |
Material | High-strength material |
Big end pin | Massive, included |
Big end bearing | Included |
Washers | Included |
Main benefits | Improved throttle response, reduced vibrations |
Application | Motocross / Racing |
